Shipping Framed Glass? The Packing Spec and the Delivery Receipt Decide Who Pays

Take one product and follow it all the way through. A 24 by 36 framed print, real glass, aluminum frame, shipped three or four dozen a week to residential addresses. Some weeks nothing breaks. Some weeks four do, and the customer photo always shows the same thing: a crack running from one corner, the frame intact, the carton barely marked.

That pattern is the whole subject in miniature. The carton passed. The contents did not. And the question of who absorbs the cost is settled almost entirely by documents created before and at the moment of handover, not by the argument you have afterward.

What the packing standard actually promises

There are two reference points most shippers end up using. ISTA 3A is a general simulation test for parcel shipments weighing under 150 pounds, moving individually through a carrier network. ASTM D4169 is a broader distribution-cycle test where you choose the hazards and the assurance level you want to simulate.

Both are honest about their scope, and the scope is narrower than people assume.

• They test a package against a defined sequence of drops, vibration, compression and sometimes atmospheric conditioning. They do not promise your product survives every real-world event.
• The drop heights are tied to package weight. A light package gets dropped from higher, because in the real world light packages get thrown further.
• Pass criteria are set by you. The standard provides the test; you define what counts as damage. If you write the pass criterion as "frame intact," a cracked pane passes.
• Flat, glazed items have an orientation problem the standard will expose if you let it. Edge and corner drops on the long edge are where glass goes. Face drops usually do not break it.

So the first tool is a written packing specification that names the standard, the assurance level, the test lab if you used one, and the pass criteria in your own words. One page. Revision-controlled, because the day the corner block supplier changes, the spec has changed too.

The three things that changed the outcome in this case

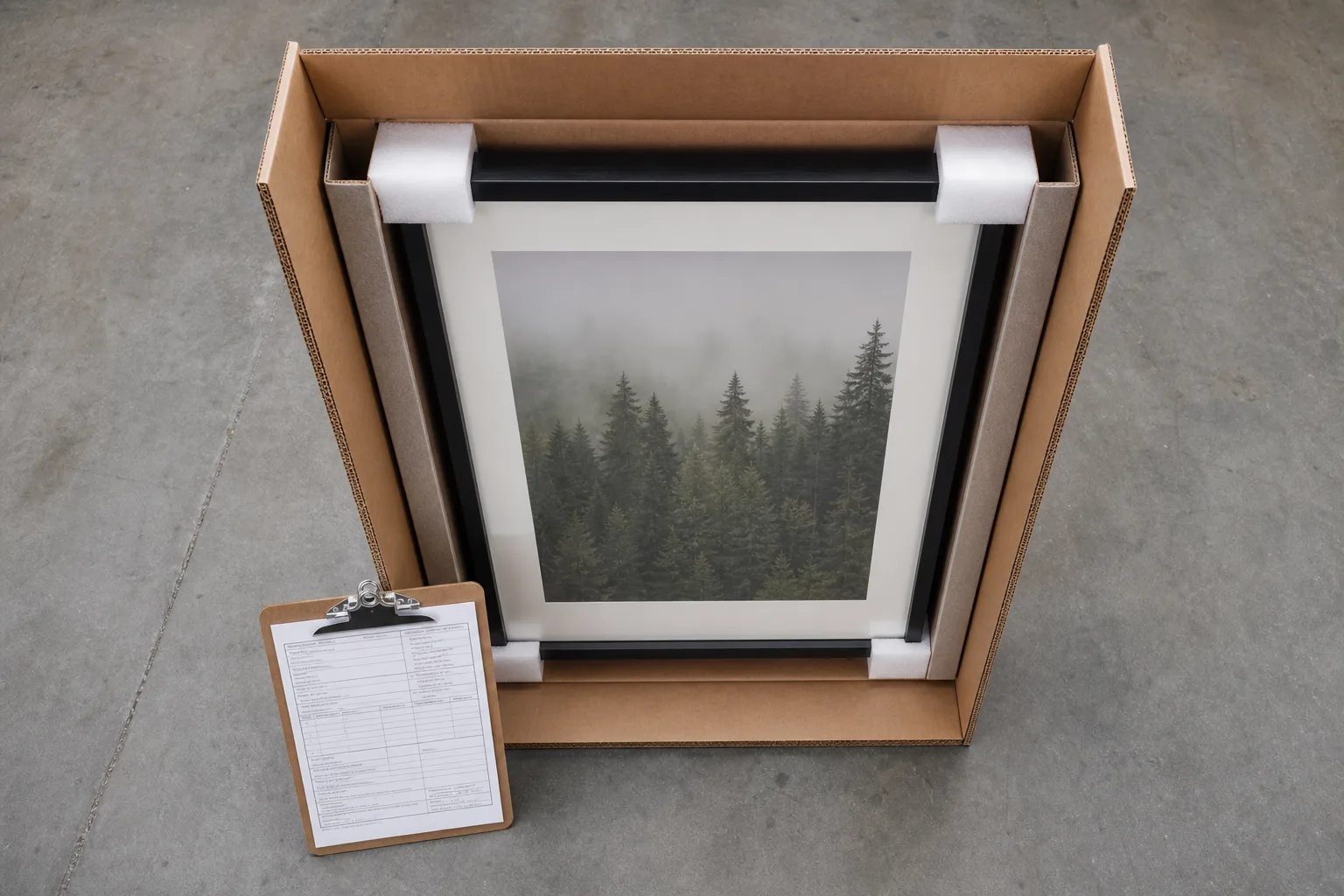

Nothing exotic. Corner protectors sized to the frame profile rather than to the carton. A rigid face board on both sides of the glazing so the pane cannot flex. And two inches of clearance on every edge, which is the number that stops an edge drop from loading the glass directly. The carton got slightly bigger and the dimensional weight went up. Breakage went down.

Many sellers also move from glass to acrylic glazing at this size and stop having the conversation at all. That is a product decision, not a packaging one, but it belongs on the same page because it competes for the same budget.

The handover document that decides the argument

Loss allocation for interstate motor freight runs through the Carmack framework, and the Federal Motor Carrier Safety Administration is the federal body responsible for oversight of interstate motor carriers. The practical consequence for a shipper is simple: the carrier's liability is real, but it is bounded by the bill of lading, the tariff and the notice deadlines, and it is easy to sign away by accident.

Three documents matter at handover.

1. The bill of lading. Freight class, declared value, piece count, and any released-value rate you accepted. A released-value rate per pound is not a coincidence. It is a deliberately cheaper rate in exchange for a liability cap, and on a light, expensive item that cap is close to nothing.
2. The delivery receipt. If the consignee signs clean, the shipment is presumed delivered in good order. Every exception has to be written on the receipt at the moment of delivery: carton crushed, corner punctured, shrink wrap torn, two of twelve damaged. "Subject to inspection" written alone is weaker than a specific note, and some carriers treat it as no exception at all.
3. The concealed damage notice. Damage found after a clean signature is a different and harder claim. Tariffs set a short window, often measured in days, for reporting it. Find your number before you need it, not after.

For parcel, the equivalents are the carrier's terms of service and the claim window written into them, which is typically far shorter than the nine months common in motor freight tariffs. Calendar it as a standing rule: damage reported by the customer on day one, claim filed by day three.

Declared value, insurance and the gap between them

These are not the same instrument, and the distinction is where most of the uncovered loss in a small operation actually sits.

Read the packaging defense closely, because it is the clause the whole file turns on. A carrier denying for insufficient packaging is saying your goods were not tendered in a condition fit to withstand ordinary handling. A tested, documented packing spec is the direct answer to that assertion. It converts a judgment call into a comparison against a published standard, and that is a materially different conversation.

The claim file, assembled before the claim

Build a folder template once and have the team fill it in the same order every time. For the framed print case, the complete file is six items.

• The commercial invoice showing the amount actually at risk, not the retail price you hope to recover.
• The bill of lading or parcel label record with declared value visible.
• The signed delivery receipt with the exception noted, or the dated concealed damage report.
• Photographs in a fixed sequence: all six faces of the carton closed, then the opened carton with interior packaging undisturbed, then the item, then the damage close up. Timestamped, from the consignee where possible.
• The packing specification, with the test report or in-house drop test record attached.
• The disposition note: repair cost, replacement cost, salvage value, and where the damaged unit is being held. Carriers can request inspection, and discarding the packaging before they do ends most claims.

Retention matters more than people expect. Keep the full file for the longest limitation period that applies to you, which in motor freight is commonly years rather than months for bringing suit.

Making the numbers visible

Log every damage event in one place with five fields: date, carrier, service level, lane, and failure mode. Failure mode is the field that pays for itself. Corner impact, face crush, moisture, mishandling in sortation, and point-of-delivery drop are different problems with different fixes, and they will not be distributed evenly across carriers or lanes.

After a quarter of logging, two things usually become clear: a single lane or service level is producing most of the breakage, and one change to the packing spec addresses most of the rest. At that point the decision between absorbing the loss, buying coverage and re-specifying the carton stops being a feeling and becomes arithmetic.

The glass in this case was never the hard part. The hard part was that nobody had written down what the package was supposed to survive, so there was nothing to hold up when a carrier said it had been packed badly. Once that one page existed, the claims that should pay started paying, and the ones that should never have happened mostly stopped.
